Survex - Passages can be visible as lines?

[Footleg]

Hi Răzvan,

If you use the print mode to generate output, this can include the passage
wall markers generated from the LRUD (designed to aid drawing scale
sketches from the data). I have used this in the past to export by printing
to PDF. I don't know if that helps you achieve what you are looking to do?

Footleg

On Mon, Dec 22, 2025 at 10:17 AM razvid at gmail.com <razvid at gmail.com> wrote:

> Hello everyone,
>
> Is there a way in Survex to display passage walls derived from LRUD data
> as lines (i.e., something similar to “splays” or marked in some way as
> rays)?
>
> I have some survey data I want to work with in Survex, but it only
> includes passage information (LRUD) and no splays.
>

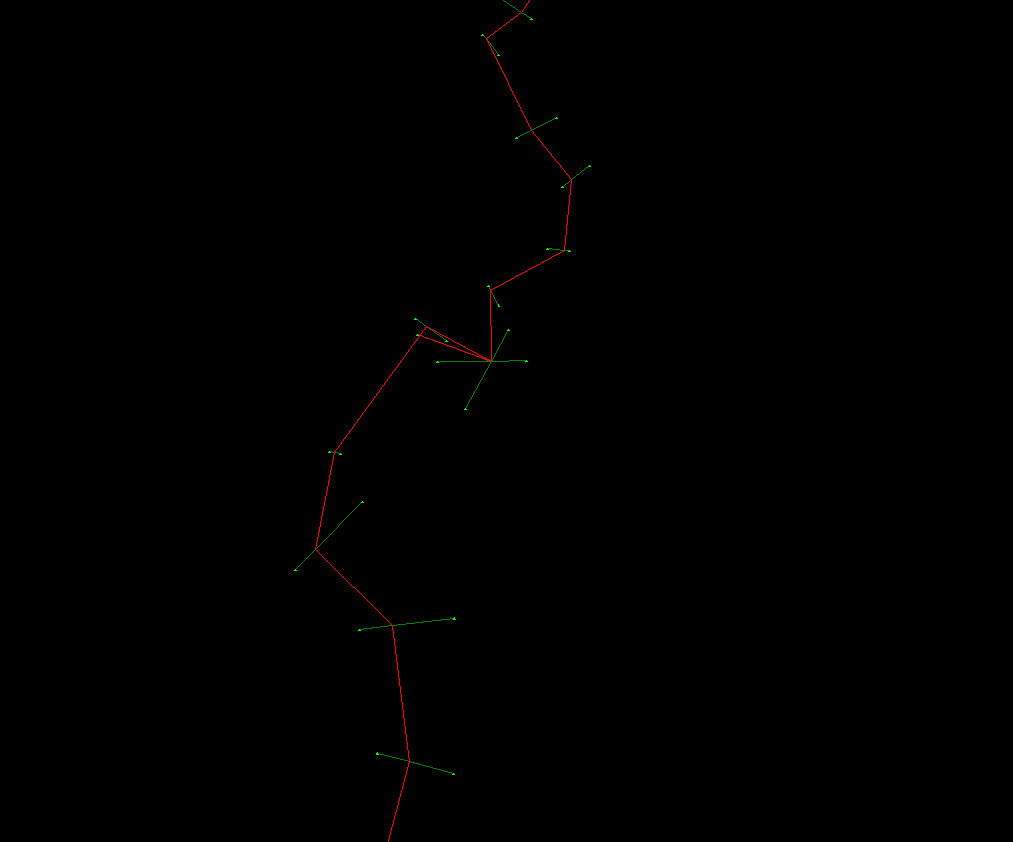

> What I’m trying to achieve is to visualize the LRUD as line segments
> (perhaps with options like from/to, or showing left/right/up/down as rays
> from the centerline).
>

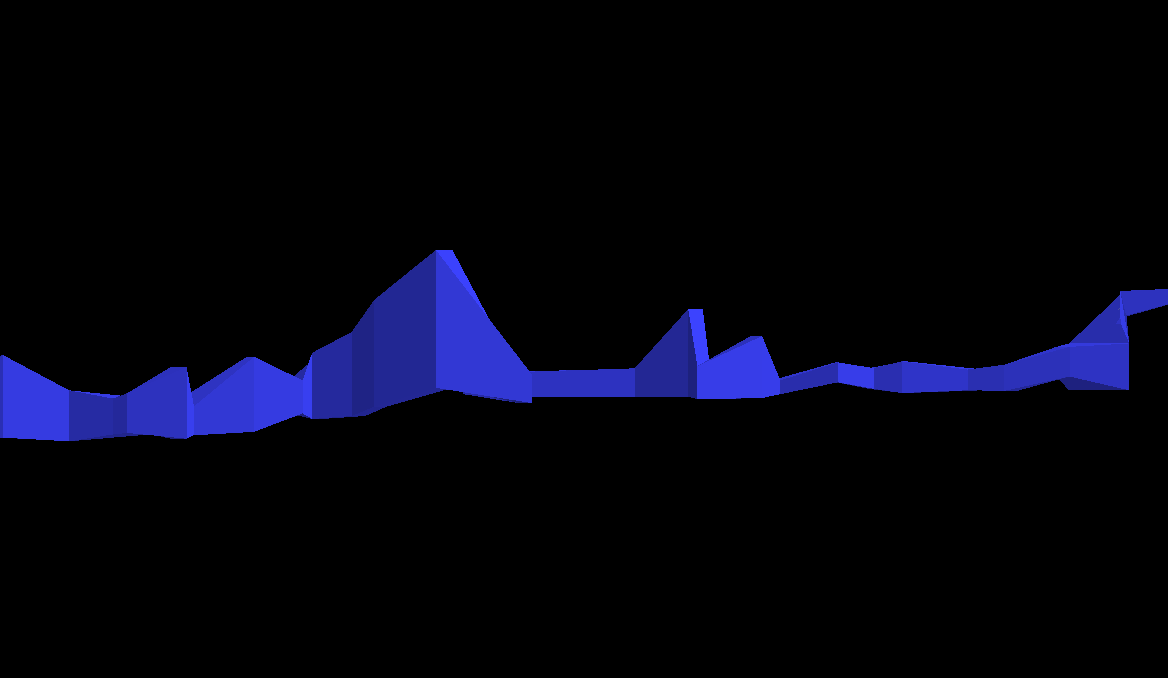

> At the moment, I can only see the coloured/textured passage surfaces. I
> attached examples to show what I mean - one with passages from survex, and
> one with passages - lines - what I want to see in Survex... (see and have
> the possibility to export)
>
> Thanks in advance!
> Răzvan Dumbravă
> razvid at gmail.com
> Tel. +40 722 348825
>
>
>
> [image: Inline image][image: Inline image]
>
>
>
