Survex - Passages can be visible as lines?

[razvid at gmail.com]

Hello everyone,

Is there a way in Survex to display passage walls derived from LRUD data as lines (i.e., something similar to “splays” or marked in some way as rays)?

I have some survey data I want to work with in Survex, but it only includes passage information (LRUD) and no splays.

What I’m trying to achieve is to visualize the LRUD as line segments (perhaps with options like from/to, or showing left/right/up/down as rays from the centerline).

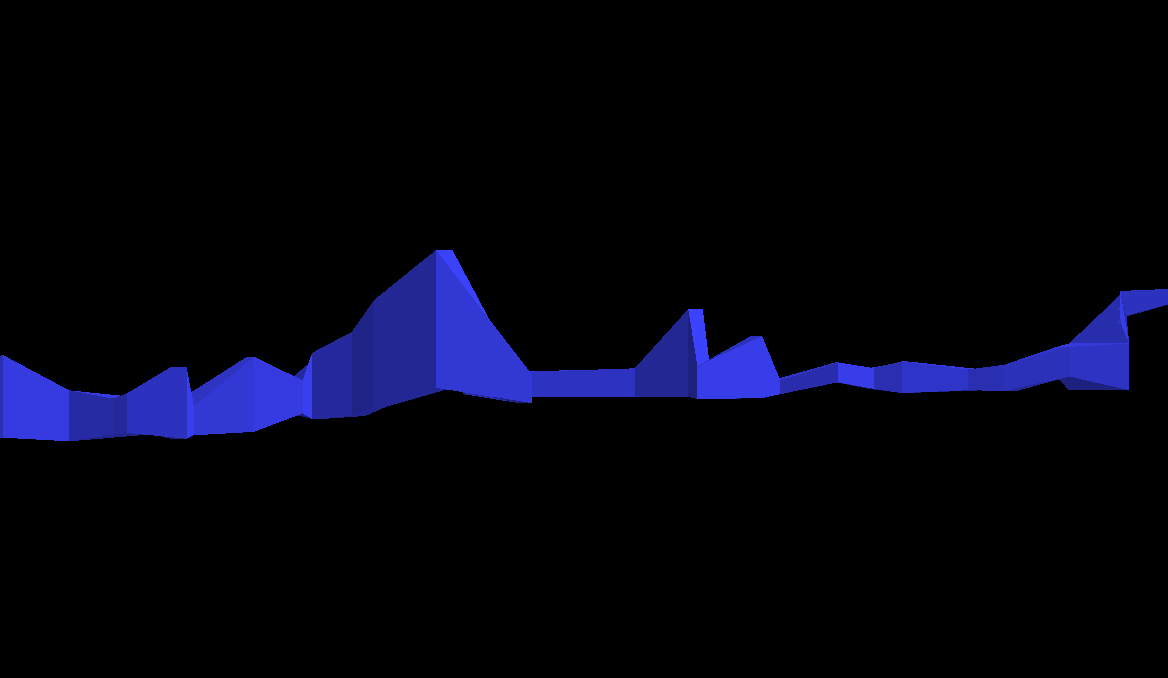

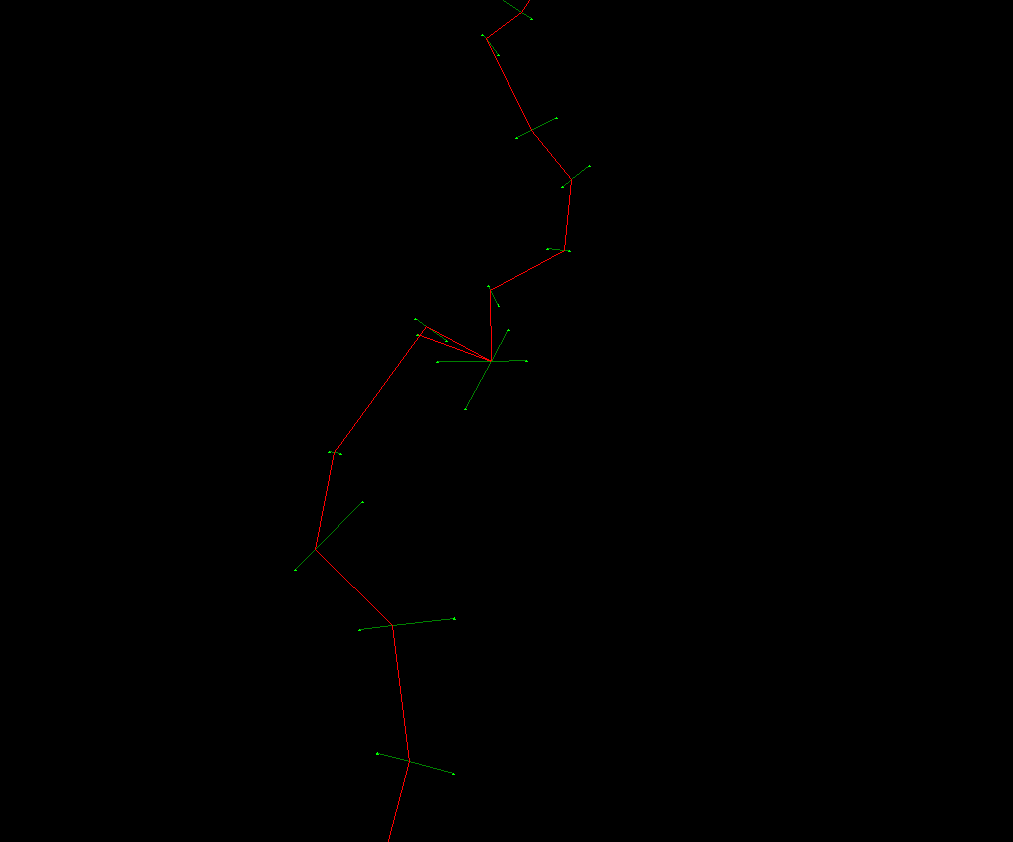

At the moment, I can only see the coloured/textured passage surfaces. I attached examples to show what I mean - one with passages from survex, and one with passages - lines - what I want to see in Survex... (see and have the possibility to export)

Thanks in advance!
